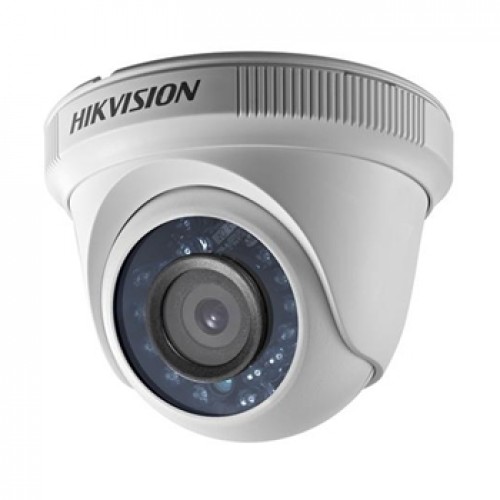

DS-2CE56D1T-IRP

Camera
Image Sensor:	\|	2MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1930(H) × 1088(V)
Min. Illumination:	\|	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm)
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night:	\|	IR cut filter with auto switch
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
S/N Ratio:	\|	More than 62 dB
Up the Coax:	\|	Support
Menu
Camera ID:	\|	On/Off (0-255)
D/N Mode:	\|	Color/ BW/ Auto/ EXT
Auto White Balance:	\|	Auto/User/Push/8000K/6000K/4200K/3000K
Private Mask:	\|	On/Off, maximum 8 zones
Motion Detection:	\|	On/Off, maximum 4 zones
BLC:	\|	On/Off
AGC:	\|	Support
Anti-flicker:	\|	On/ Off
Language:	\|	English/Chinese
Function:	\|	Digital noise reduction, Mirror
General
Operating Conditions:	\|	-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±15%
Power Consumption:	\|	Max. 4W
IR Range:	\|	Up to 20m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)
Weight:	\|	250 g
